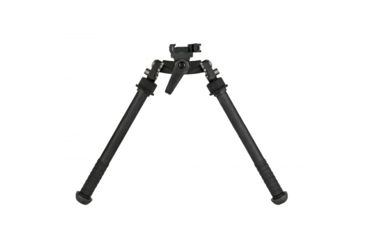

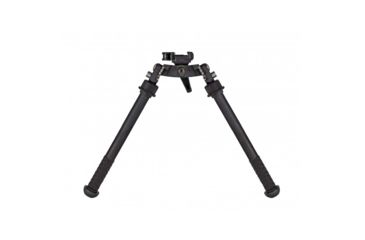

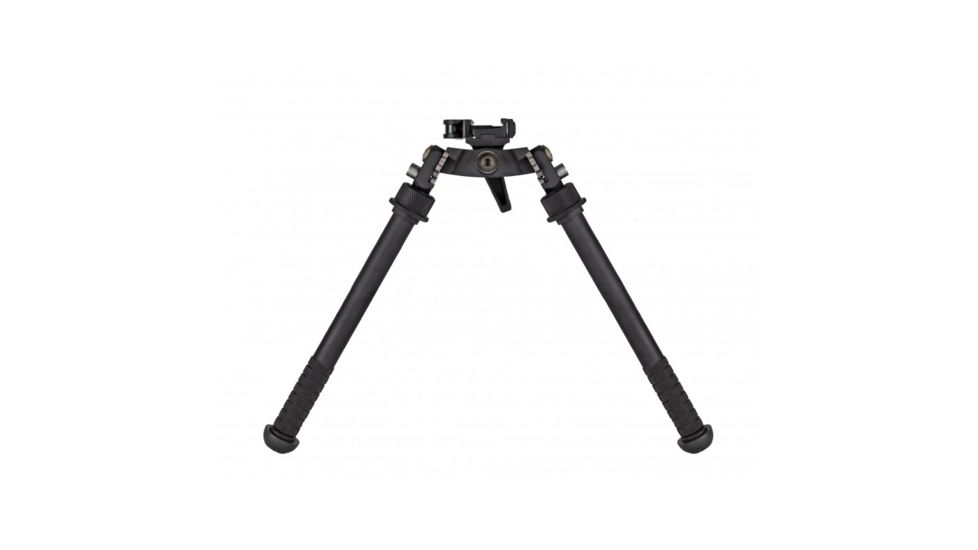

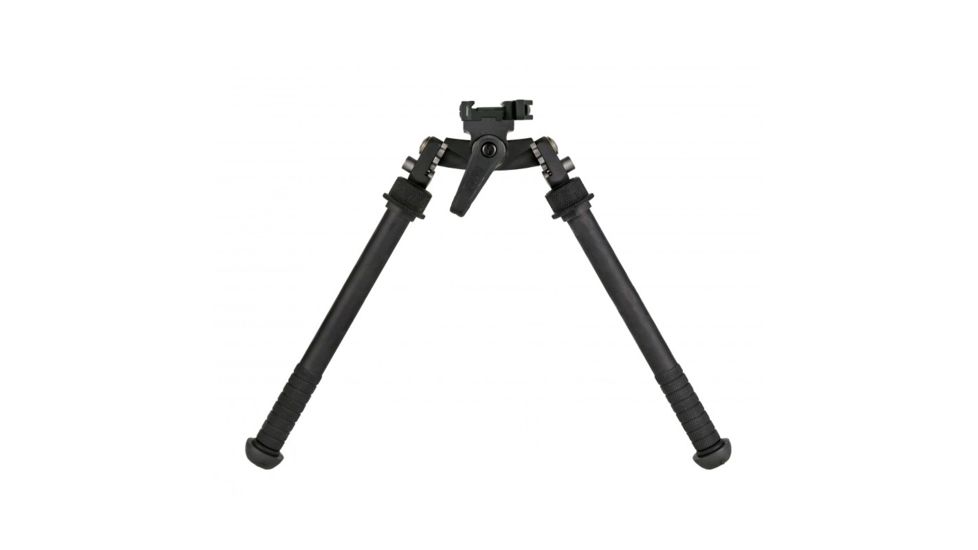

Atlas Bipods Gen. 2 CAL Tall w/ADM-170-S Lever BT69-LW17 Multiple Options w/ Free Shipping and Handling

The CAL (Cant And Loc) Atlas Bipods were developed for shooters that do not desire the Panning feature.

The BT69-LW17 mounts directly to any 1913 style Picatinny rail via the included ADM-170-S Lever. It is comprised of 6061-T6 aluminum, except the inner legs which are made from 7075-T6 aluminum, Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only. We chose to support a legend in the shooting sports by using the original KMW Pod-Loc. Read how to adjust the Pod-Loc lever below.

Using the KMW Pod-Loc:"

With the CAL bipod mounted to your rifle, you will be able to lock and un-lock the canting motion by rotating the Pod-Loc lever. Turn clockwise to lock and counter clockwise to un-lock. The Pod-Loc lever position can be adjusted for positioning by pulling the lever directly away from the body of the CAL and rotating to desired position. This positioning can be repeated until optimal position is achieved.

LW17: Lever Mount With ARMS 17S Lever; How to function the ADM Mount

Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions

Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.

Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions in apart

Optional 3in Leg Extensions to increase height

Standard soft, durable Rubber feet that are suitable for many surfaces

Optional interchangeable Ski, Spike, Cleat and Spiked Cleat feet easily swapped in the field with the press of a stainless steel plunger with a bullet tip

Optional mounting systems available for Accuracy International and Sako rifles

Specifications for Atlas Bipods Gen. 2 CAL Tall w/ADM-170-S Lever:

Features of Atlas Bipods Gen. 2 CAL Tall w/ADM-170-S Lever

• Height Range: 6.5 12.5in approximately
• Cant: 15 degrees +/-
• 5 leg positions: 0, 45, 90, 135 and 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 16.08 ounces
• Footprint: 9.75 13in

Package Contents:

• Atlas Bipods Gen. 2 CAL Tall w/ADM-170-S Lever
