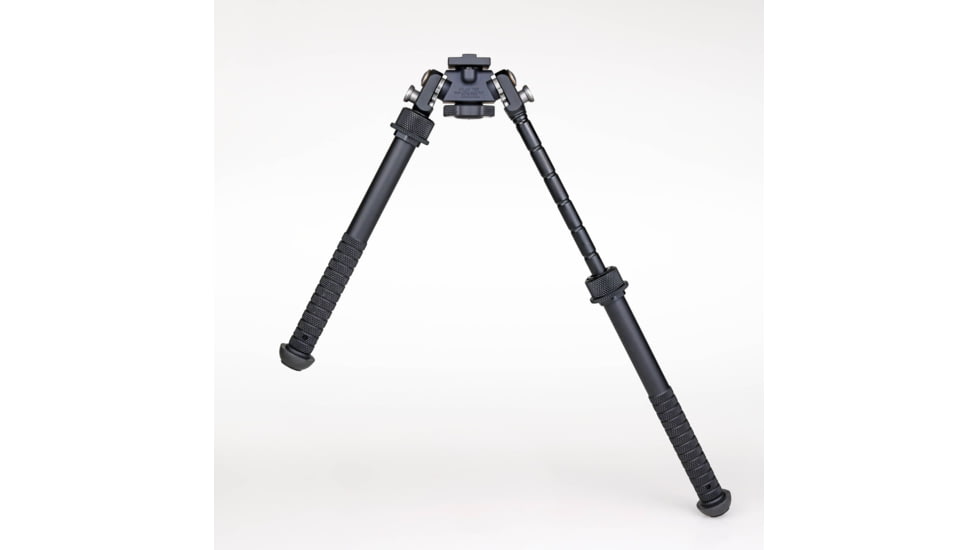

Product Info for Atlas PSR Tall Bipod
About the PSR Series: The PSR Atlas Bipod is an upgraded V8 that developed into a series of its own through military testing. The BT46-LW17 was selected for the USSOCOM Precision Sniper Rifle (PSR) Weapons System. Features non-rotating legs and estimated 40% stronger than the V8 Series. It is the hard use bipod of choice for professionals globally.
Specifications for Atlas PSR Tall Bipod:
| Manufacturer: | Atlas |
| Lateral Tilt: | 30 degrees |
| Bipod Leg Material: | 7075-T6 Aluminum |
| Panoramic Rotation: | 30 degrees |
| Height Range: | 6.2 - 12.5 in |
| Bipod Footprint Range: | 10 - 14.5 in |
| Fabric/Material: | 6061-T6 Aluminum |
| Height: | 8.3 in |
| Weight: | 12.86 oz |
| Finish: | Mil Spec Type III Hard Coat Anodized |
| Color: | Black |
Features of Atlas PSR Tall Bipod
- UHMW components used for smooth tracking
- Preload on Pan and Cant can be tightened by means of the knurled knob
- No Clamp interface requires 17S size mount or adapter with matching two hole pattern of 1.100in with 10/32 threads
- Recommended torque specification for installation of any mount/adapter: up to 30 inch pounds
- Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
- Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
- Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the seven positions 3/4in apart
- Hold What You Move Technology
- Includes our Standard Rubber Feet durable and suitable for many surfaces
- Optional Leg Extensions and Adjustable Leg Extensions to increase height
- Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
- Optional mounting systems available for Accuracy International and Sako rifles
Package Contents:
- Atlas PSR Tall Bipod
