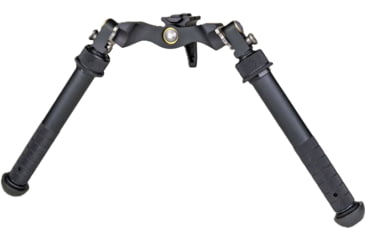

Product Info for Atlas Super CAL Bipod
About the Super CAL Series: The supersized Cant And Loc Atlas Bipod was developed for larger calibers and heavy guns engaging extreme distances estimated 50% larger than the CAL series with the same benefits of five independent leg positions including the patented 45 degrees leg position but without the Pan function to ensure the bore stays perpendicular to the bipod legs. Features 63 of adjustable, preloaded Cant and a wide footprint.
Specifications for Atlas Super CAL Bipod:
| Manufacturer: | Atlas |
| Lateral Tilt: | 63 degrees |
| Bipod Leg Material: | 6061-T6 Aluminum |
| Height Range: | 5.6 - 10.8 in |
| Bipod Footprint Range: | 14.75 - 19.37 in |
| Fabric/Material: | 6061-T6 Aluminum |
| Height: | 7.4 in |
| Weight: | 21.3 oz |
| Finish: | Mil Spec Type III Hard Coat Anodized |
| Color: | Black |
Features of Atlas Super CAL Bipod

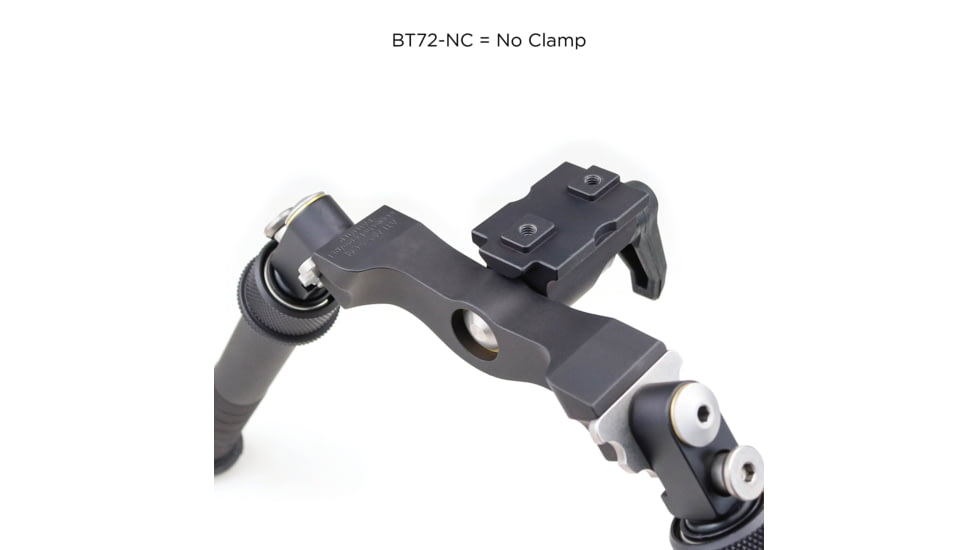

- NC: No Clamp No Clamp interface requires 17S size mount or adapter with matching two hole pattern of 1.100in with 10/32 threads
- Recommended torque specification for installation of any mount/adapter: up to 30 inch pounds
- Preload on Cant can be adjusted by removing Pod-Loc and tightening/loosening the exposed nut by 1/8-1/4 turns until desired tension achieved

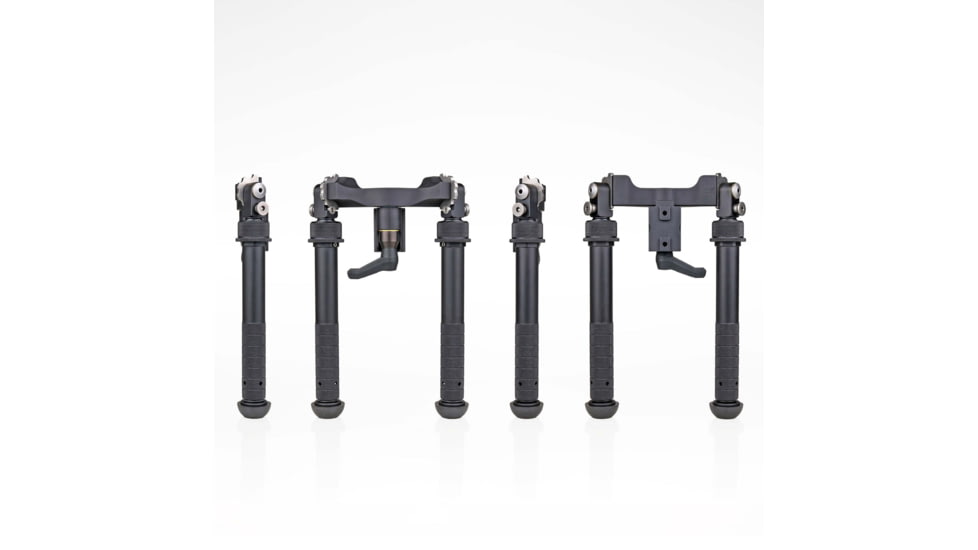

- Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
- Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
- Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the seven positions 3/4in apart
- Hold What You Move Technology
- Includes Super CAL size Standard Rubber Feet durable and suitable for many surfaces
- Optional quick-change Ski Feet and Raider Cleat easily swapped in the field with the press of a stainless steel plunger

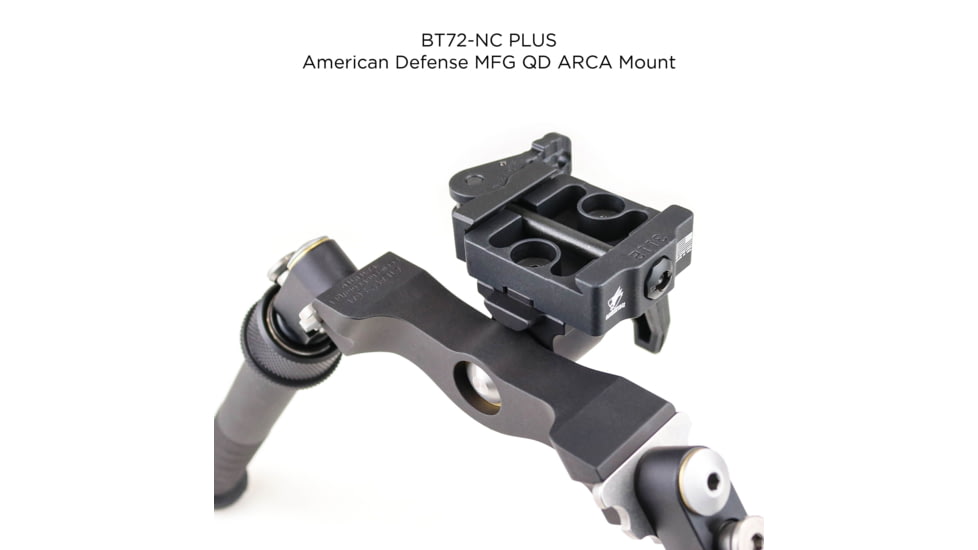

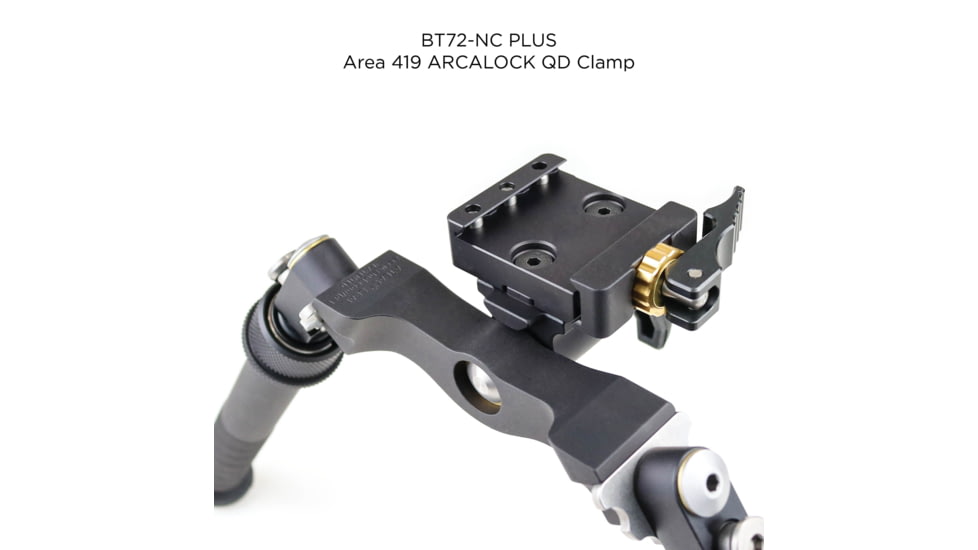

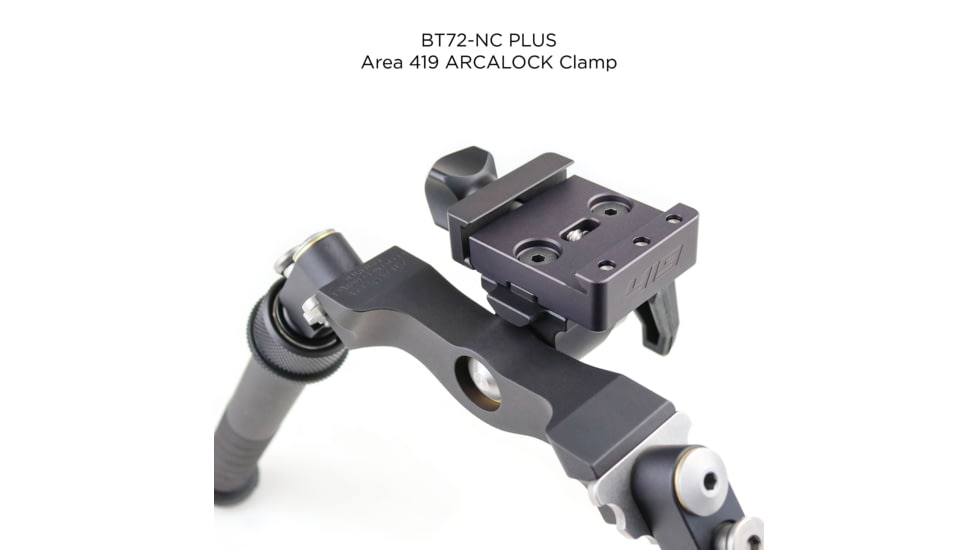

- Optional mounting systems available for Accuracy International and Sako rifles
Package Contents:
- Atlas Super CAL Bipod
